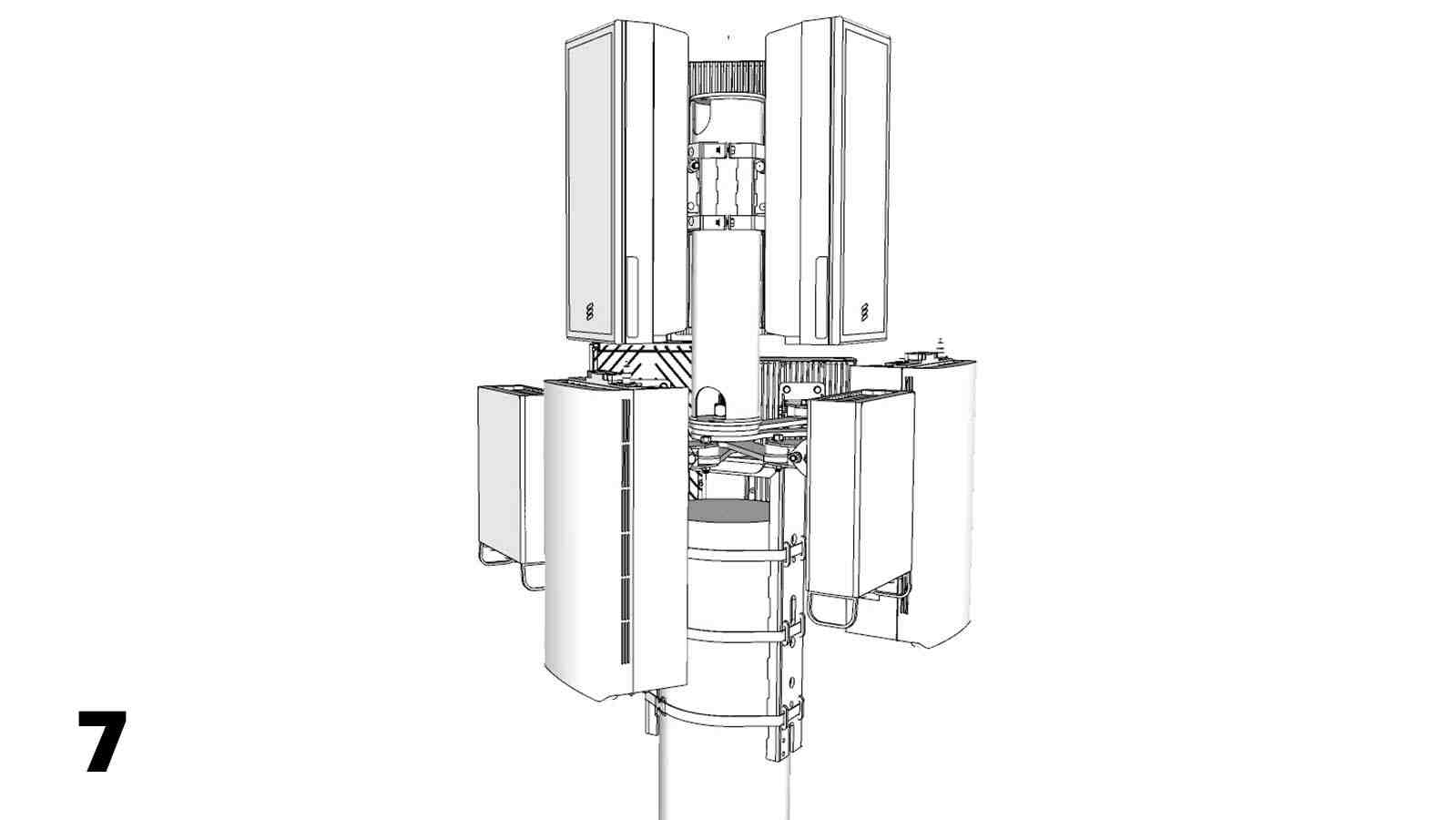

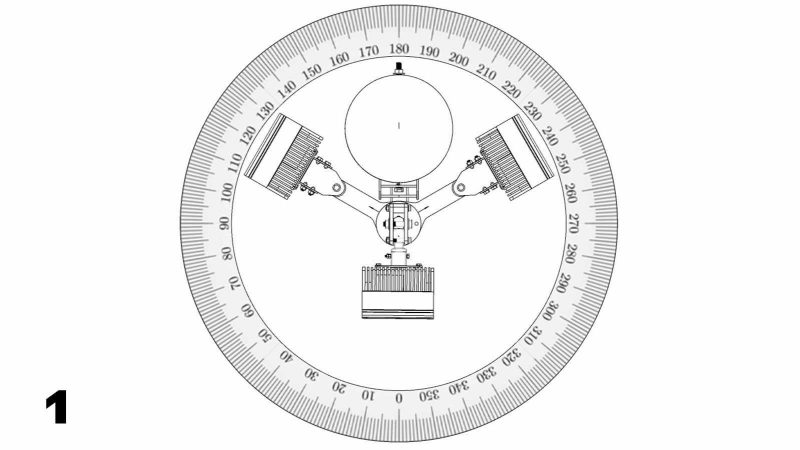

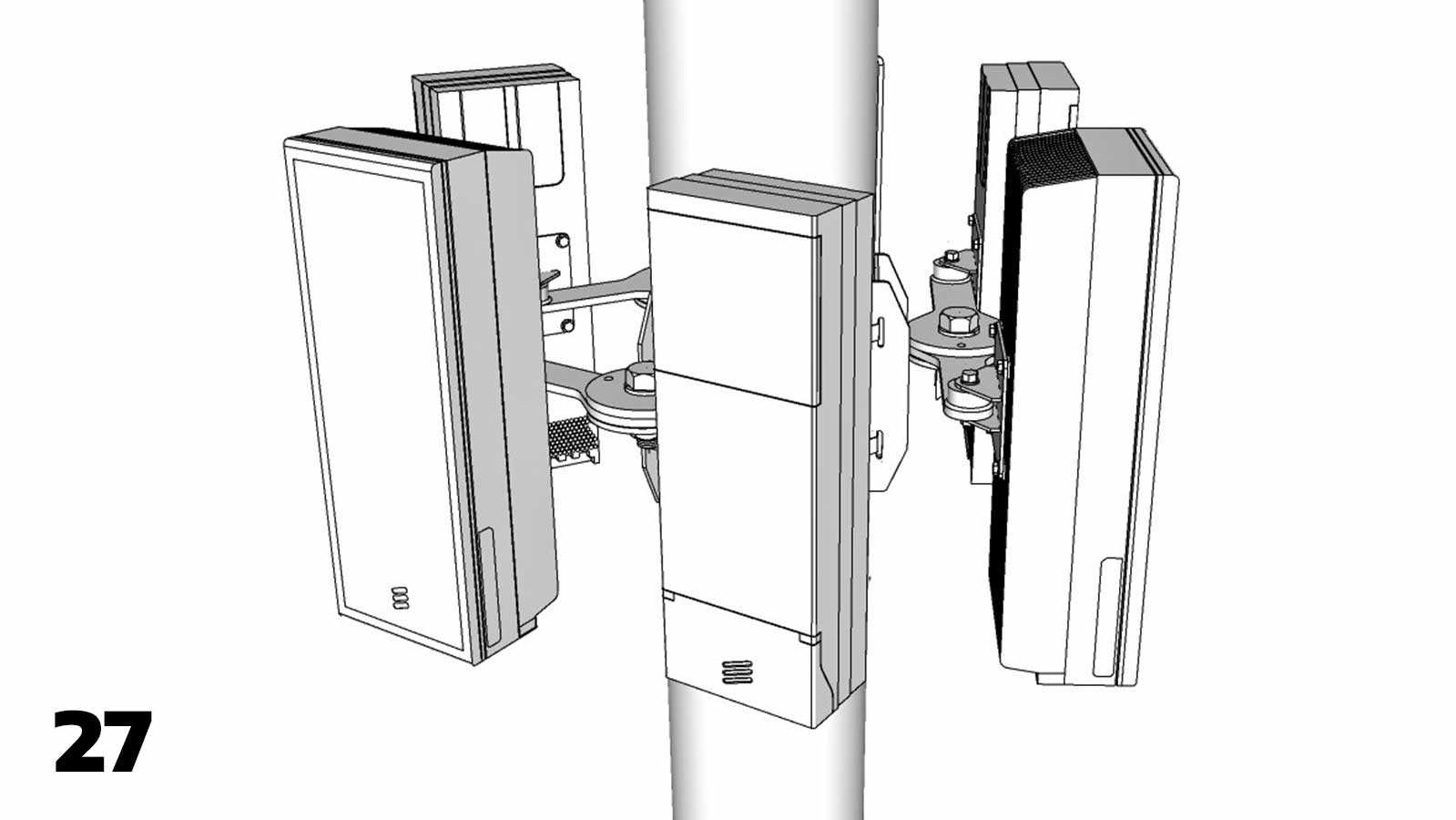

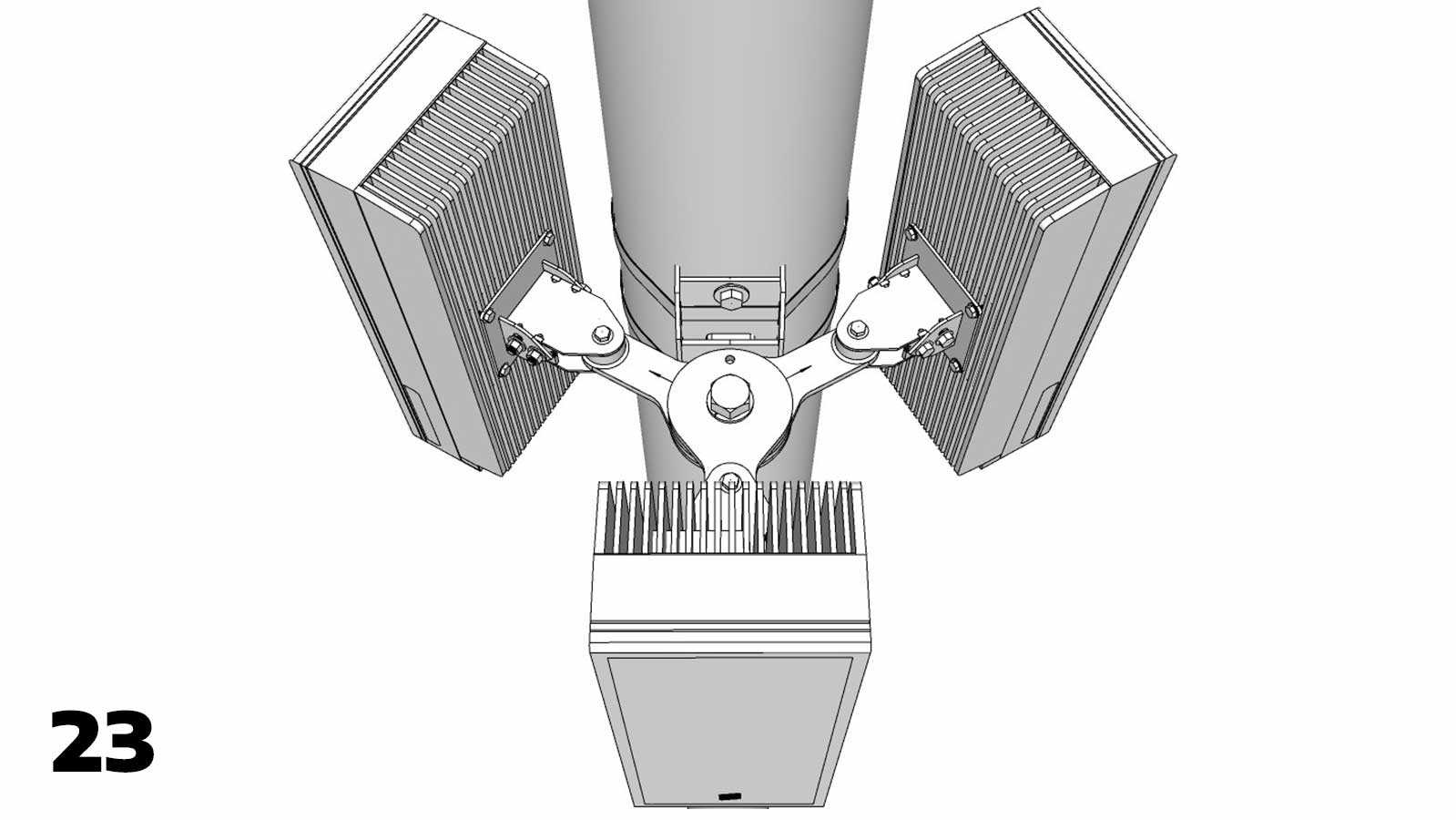

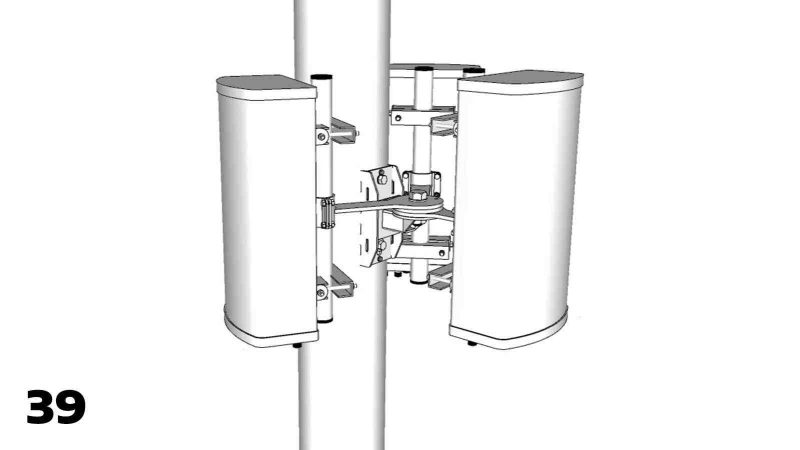

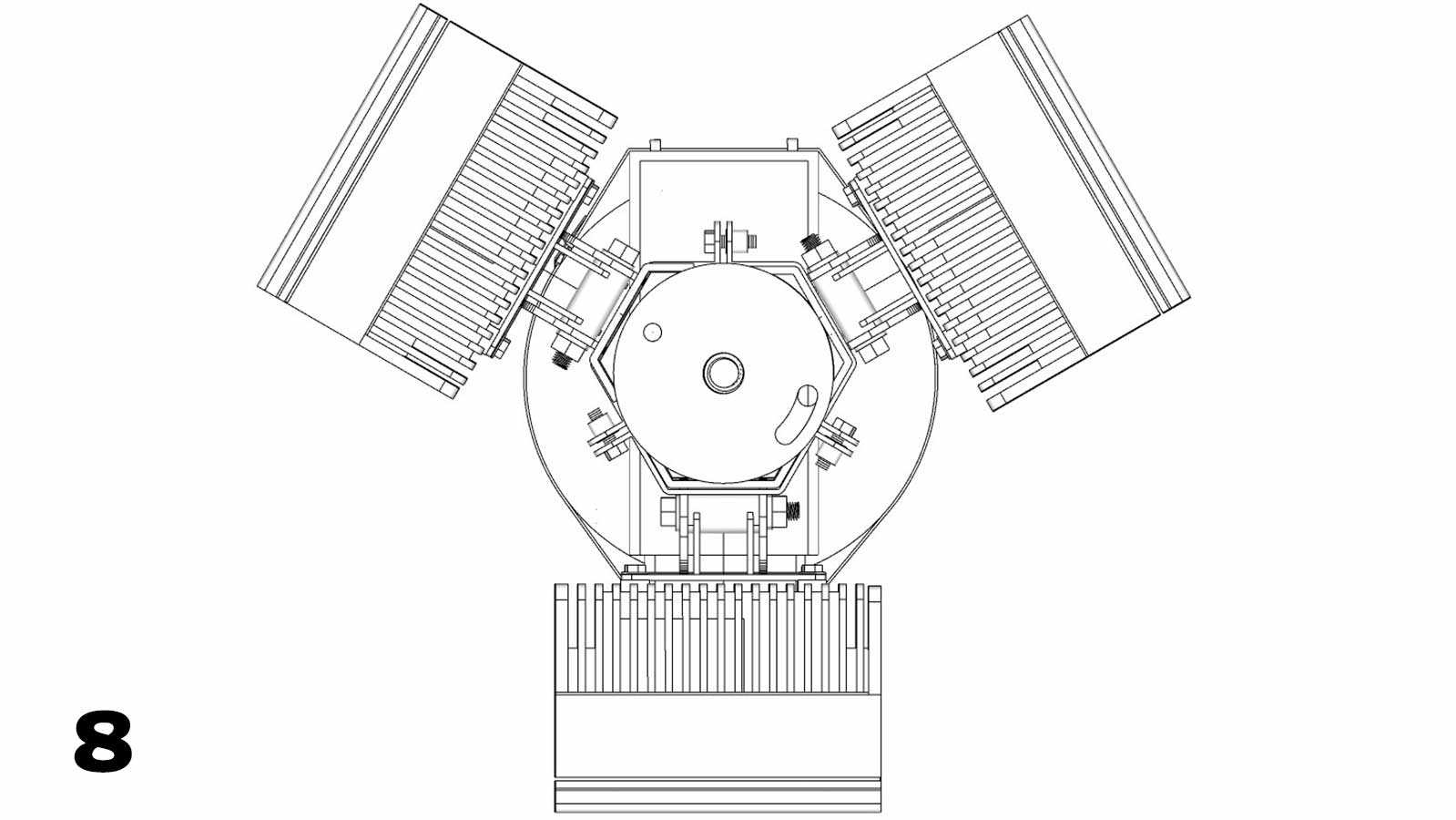

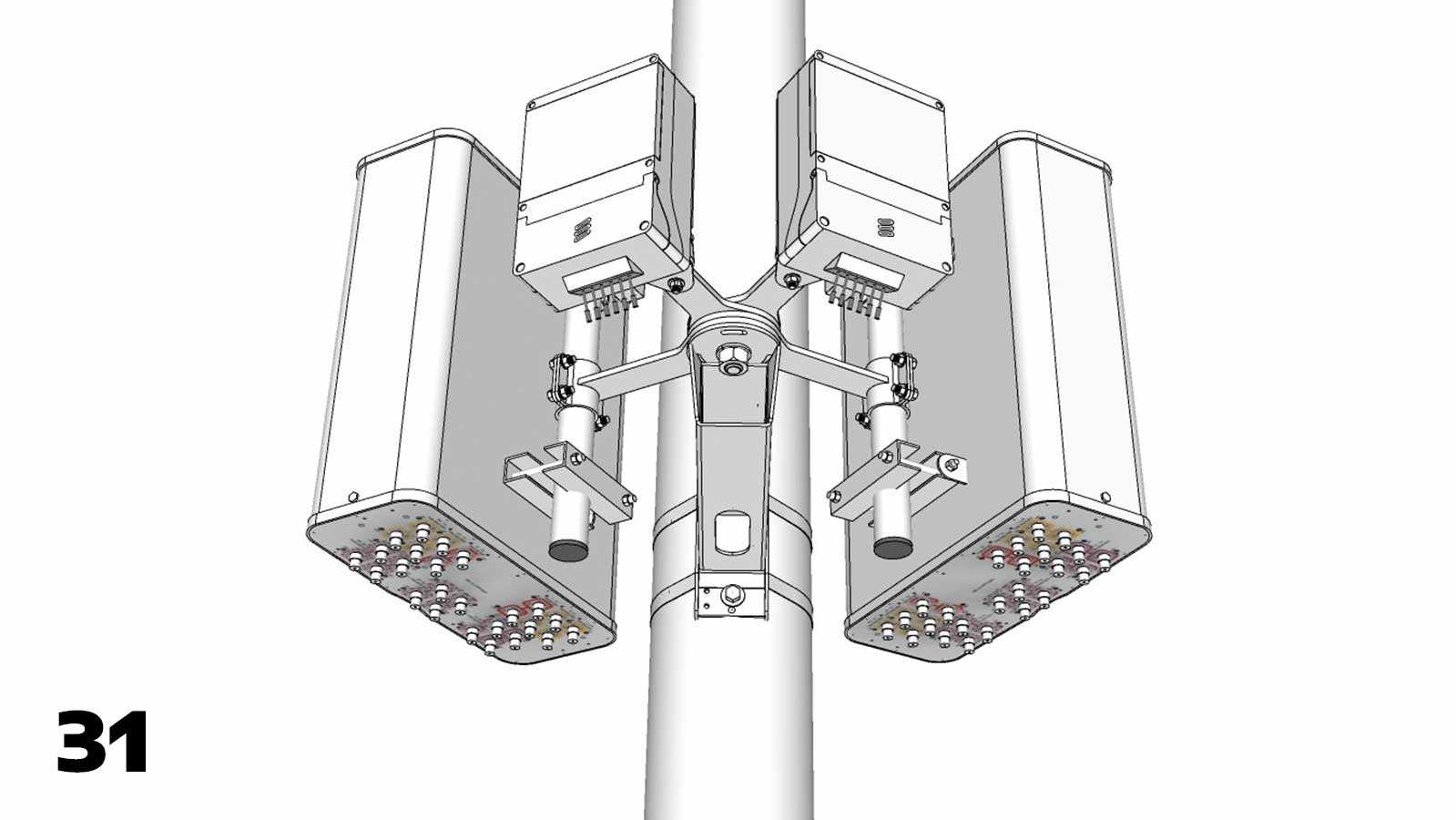

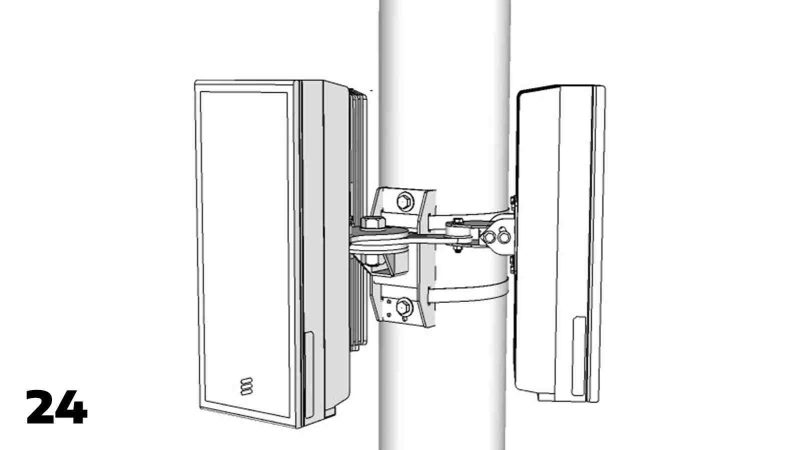

STACK-BRACKET 360°
P/N: STKBKT-360
Features:
- Versatile mounting bracket for 4G & 5G antennas to mount in one assembly on the pole
- Stack-Bracket 360° allows for up to 7 antennas in one application. The 4G antenna can be mounted on top with the extension attachment.
- All brackets have full adjustability allowing both pan & tilt along with the 360° rotation on the stack.
- Adjustable 20° tilt at joints of the stackable brackets
- Swivel Ball Antenna Mount (SBAM) maneuvers easily and locks into place.
- Designed for pole top or side pole mounting with skirting options
- Customizable mounting bracket per antenna needed
- Steel & Aluminum
- Hardware included
STACK BRACKET SKIRT ASSEMBLY
P/N: STKBKT-SKAS
Features:
- Made specifically for the top & side pole mounted Stack Bracket 360
- Customizable to fit any OEM Antenna
- Conceals an assembly of up to 7 Antennas
- Bottom plate adjusts to fit 4" - 10" diameter poles
- Fully encapsulates the coax cables
- Enhances aesthetics for pole mounted Telecom equipment
- Easy installation
- Available for standard RAL powder coating
- Hardware Included
- Height: 16" Top Skirt & 16" Bottom Skirt
- Diameter: 4" to 14"
- Weight: 6 LBS

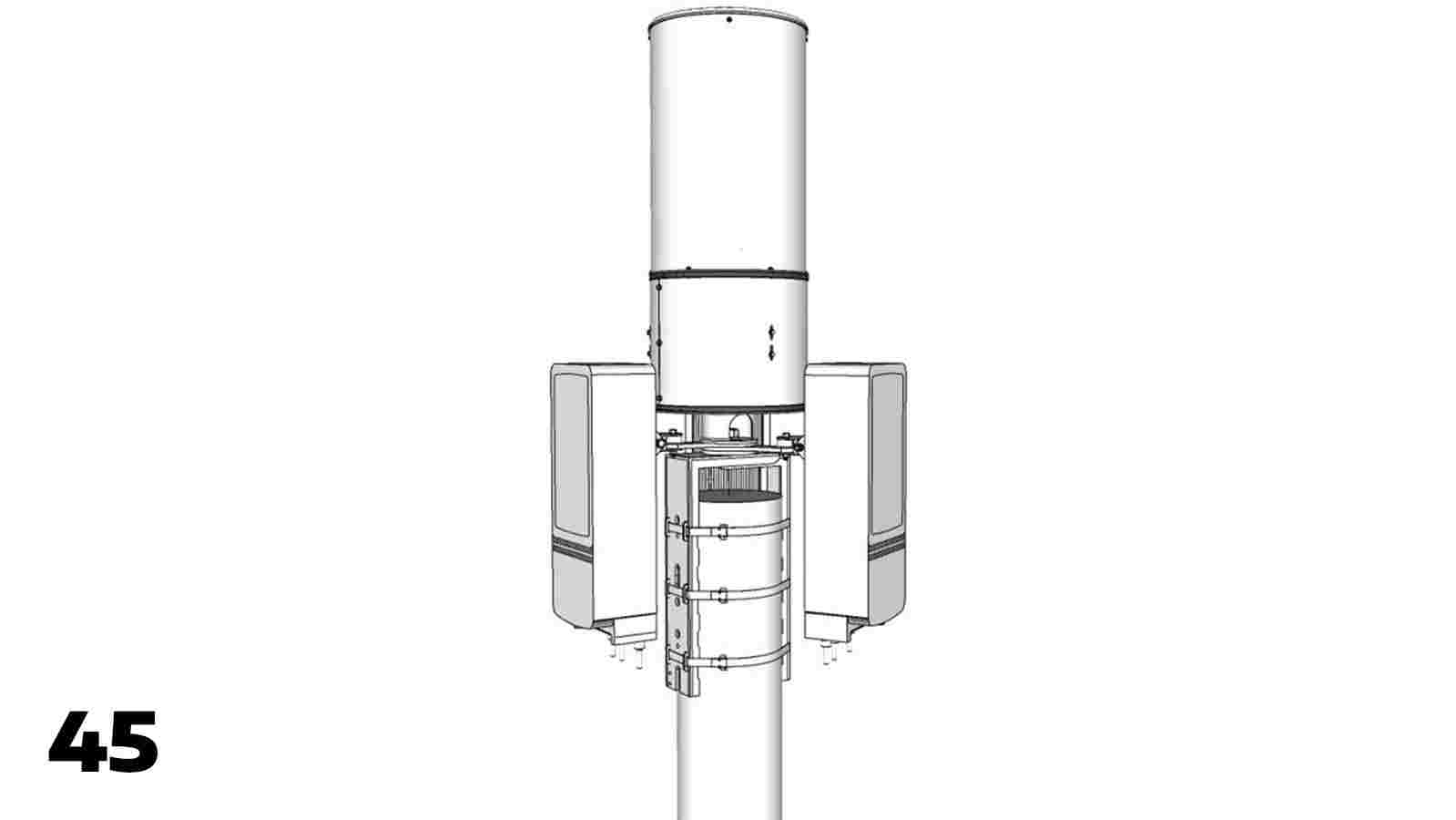

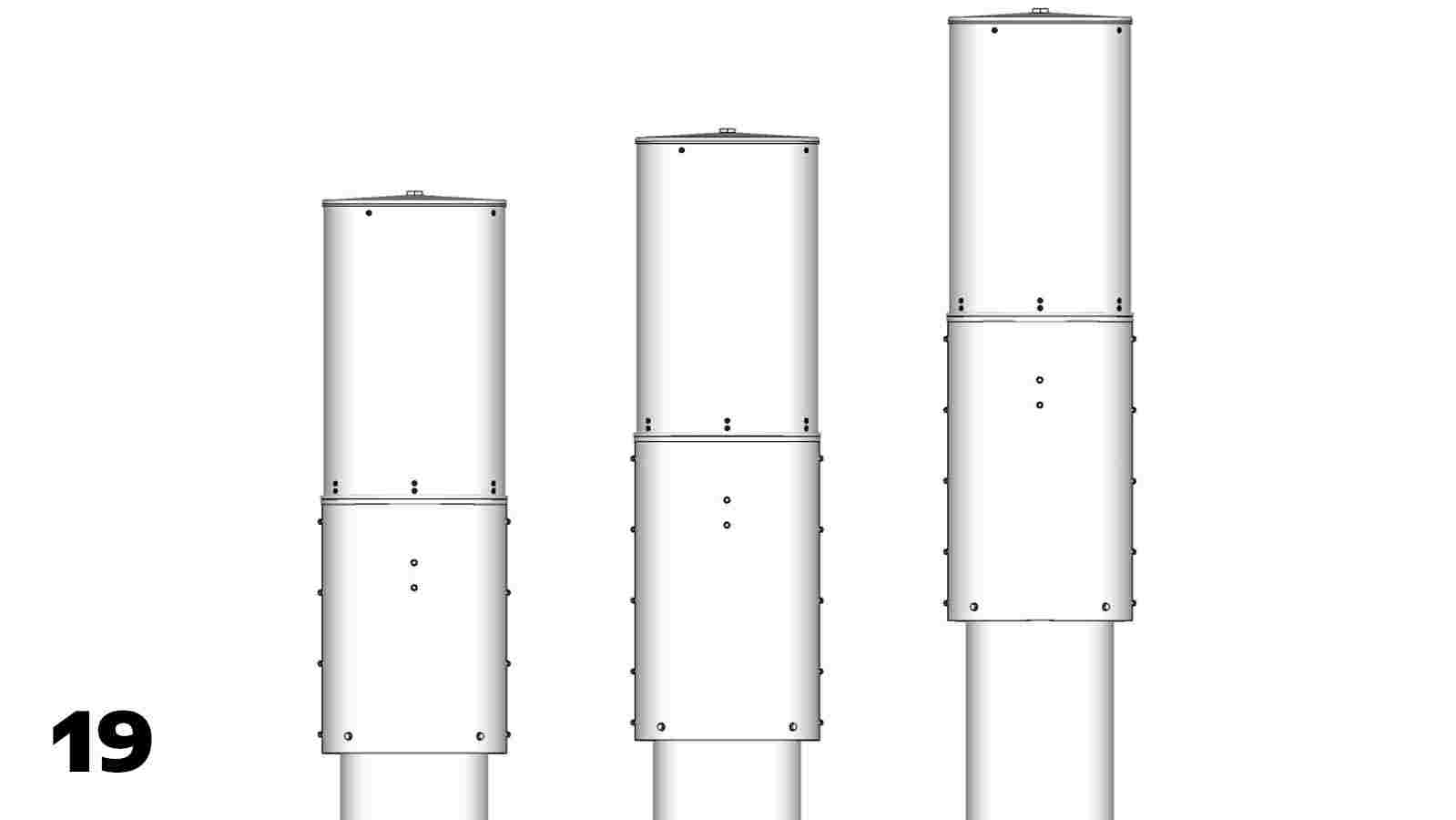

STACK-BRACKET TOP POLE SKIRT
P/N: STKBKT-TPS
Features:
- Aesthetically conceals top pole mounted brackets and cables
- Multiple entry points for the coax cables to run from the antennas to the pole
- Customizable diameter from 4" to 14"
- Bottom plate adjusts to fit 4"-14" diameter poles
- Aluminum
- Available for standard RAL powder coating
- Hardware Included
- Height: 22"
- Diameter: 4" to 14"
- Weight: 4 LBS
STACK-BRACKET SIDE POLE SKIRT
P/N: STKBKT-SPS
Features:
- Aesthetically conceals side pole mounted brackets and cables
- Multiple entry points for the coax cables to run from the antennas to the pole
- Aluminum
- Available for paint or standard
- RAL powder coating
- Hardware Included
- Height: 12" to 22"
- Diameter: 4" to 14"
- Weight: 4 LBS
STACKABLE SHROUD
P/N: STKSHRD
Features:
- Stackable Shrouds can be customized for many different arrangements of equipment
- Stackable heights of 30", 60", & 90"
- Made for mounting and concealing Telecommunications equipment on poles
- Aluminum
- Available for paint or standard RAL powder coating
- Hardware Included
- Recommended use with RSOB
- Length: 20"
- Width: 20"
- Height: 30"
- Weight: 25 lbs per 30" shroud
DUKE JOINT USE EQUIPMENT SHROUD
P/N: DJUSHRD
Features:
- Made for mounting and concealing Telecommunications equipment on poles
- Customizable for different equipment sizes and arrangements
- Equipped with shield to conceal back of shroud for a streamlined look on metal poles
- Aluminum
- Available for paint or standard RAL powder coating
- Hardware included
- Recommended use with RSOB
- Length: 20"
- Width: 20"
- Height: 60"
- Weight: 50 lbs
UNIVERSAL 60" SHROUD
P/N: UNS-60
Features:
- Made for mounting & concealing Telecommunications equipment on wood and metal poles
- Equipped with side shields to conceal back of shroud for a streamlined look
- Customizable for different sizes
- Aluminum
- Available for paint or standard RAL powder coating
- Recommended use with the RSOB
- Length: 20"
- Width: 20"
- Height: 60"
- Weight: 50 lbs
ADJUSTABLE POLE ANTENNA SKIRT-12"
P/N: APDS-12
Features:
- 12" diameter antenna skirt
- Used to mount antennas to Top Pole Brackets & Interlocking Brackets on wood & metal poles
- Built in self leveling bracket adjusts skirt height from 2.5"- 9"
- Bottom plate adjusts to fit 4"-10" diameter poles
- Aluminum
- Available for paint or standard
- RAL powder coating
- Hardware Included
- Height: 32"
- Diameter: 12"
- Weight: 3 lbs
ADJUSTABLE POLE ANTENNA SKIRT-14"
P/N: APDS-14
Features:
- 14" diameter antenna skirt
- Used to mount antennas to Top Pole Brackets & Interlocking Brackets on wood & metal poles
- Built in self leveling bracket adjusts skirt height from 2.5"- 9"
- Bottom plate adjusts to fit 4"-10" diameter poles
- Aluminum
- Available for paint or standard
- RAL powder coating
- Hardware Included
- Height: 32"
- Diameter: 14"
- Weight: 3 lbs
ADJUSTABLE POLE ANTENNA SKIRT-16"
P/N: APDS-16
Features:
- 16" diameter antenna skirt
- Used to mount antennas to Top Pole Brackets & Interlocking Brackets on wood & metal poles
- Built in self leveling bracket adjusts skirt height from 2.5"- 9"
- Bottom plate adjusts to fit 4"-10" diameter poles
- Aluminum
- Available for paint or standard
- RAL powder coating
- Hardware Included
- Height: 32"
- Diameter: 16"
- Weight: 3 lbs
WOOD POLE ANTENNA SKIRT
P/N: WPAS
Features:
- Made for esthetically mounting & concealing antennas
- Built in self leveling bracket adjusts skirt height from 2.5"- 9"
- Bottom plate adjusts to fit 4”-10” diameter poles
- Aluminum
- Available for paint or standard
- RAL powder coating
- Hardware included
- Recommended use with
- Top Pole Bracket & Self Leveling Antenna Bracket
- Height: 32"
- Diameter: 15"
- Weight: 3 lbs

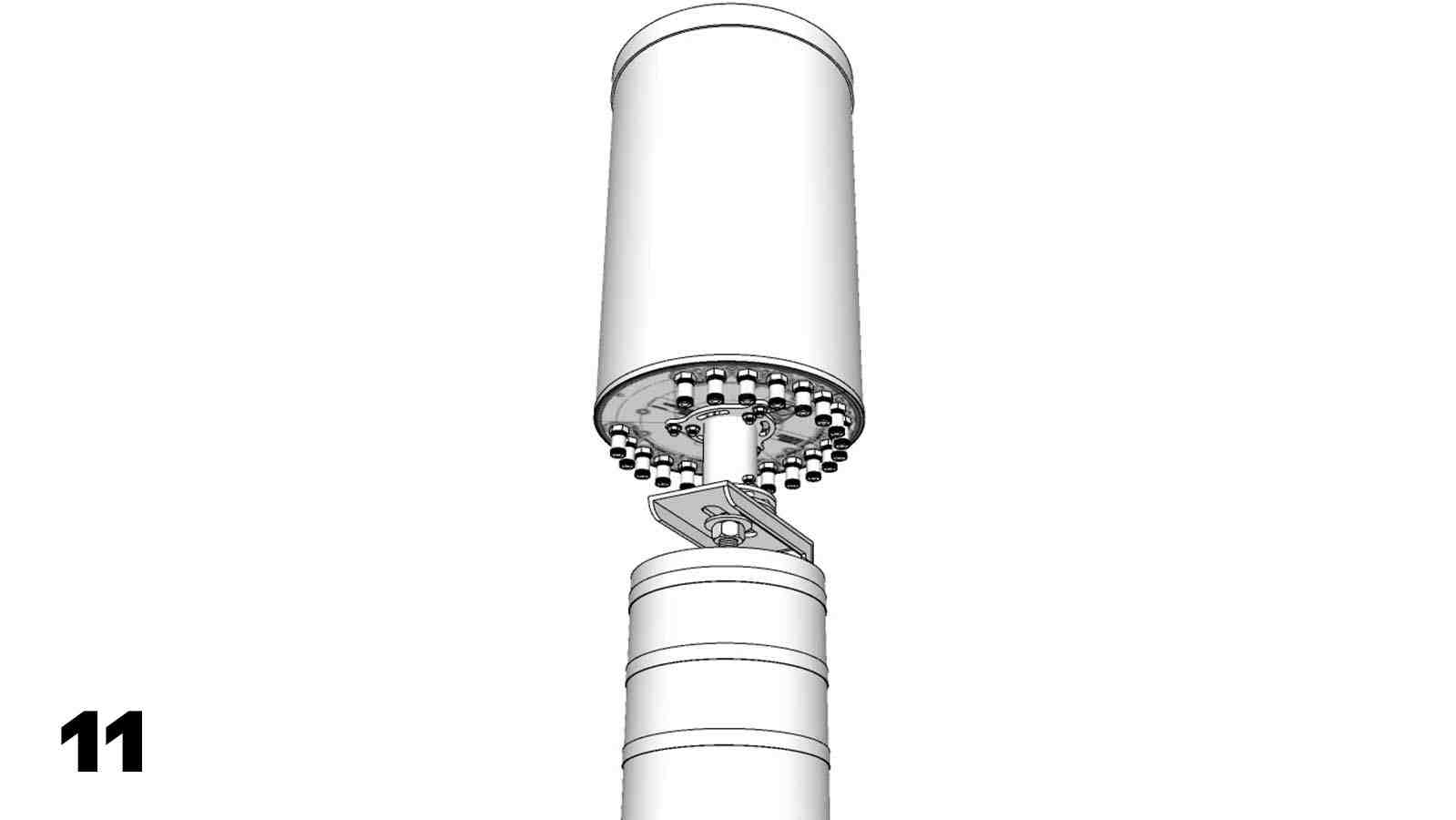

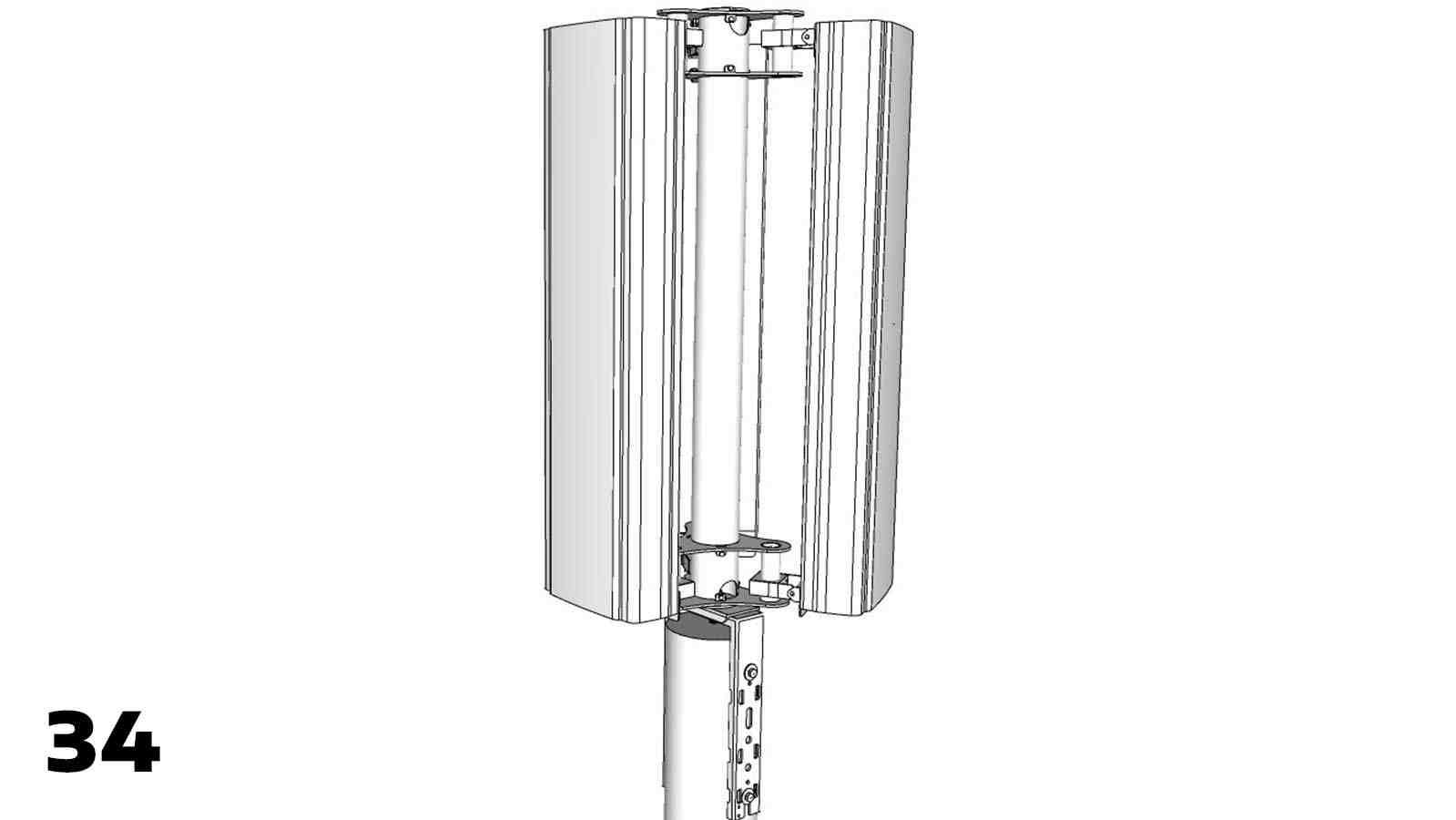

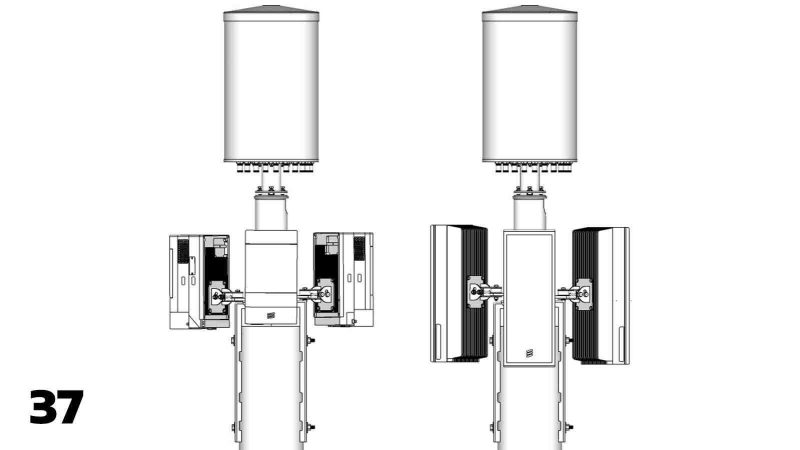

INTERLOCK TOP POLE ASSEMBLY
P/N: ITPB-01
Features:
- Heavy duty mounting bracket for top pole installations
- Adjustable from 8" to 13" diameter to fit every pole
- Banding or bolt attachment
- Recommended use with TPB-02-G and any SLAE-3 BOLT, SLAE-3, & SLAE-6
- Galvanized steel
- Length: 8"
- Width: 4"
- Height: 22"
- Weight: 6 lbs
STEEL TOP POLE BRACKET
P/N: STPB
Features:
- Heavy duty mounting bracket for top pole installations
- Sized for 4" diameter aluminum or fiberglass poles
- Banding or bolt attachment
- Galvanized Steel
- Single use or with Interlock Top Pole Bracket
- Recommended use with TPB-02-G and any SLAE-3 BOLT, SLAE-3, & SLAE-6
- Length: 6.5"
- Width: 3.25"
- Height: 20"
- Weight: 6 LBS

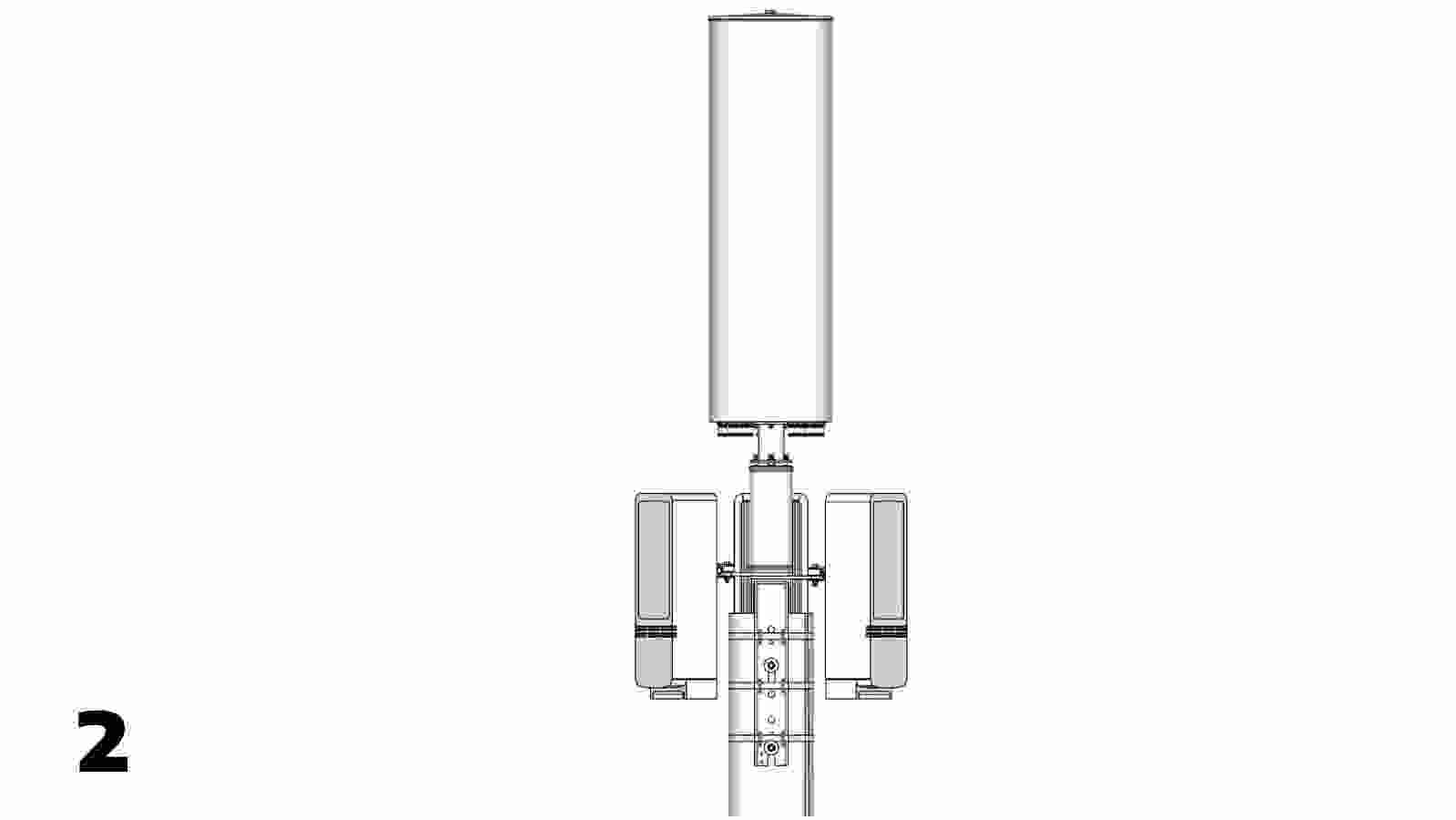

TOP POLE ANTENNA BRACKET
P/N: TPB-02-G
Features:
- Heavy duty mounting bracket for top pole installations
- Banding or bolt attachment
- Galvanized steel
- Compatible use with ITPB-01 and any SLAE-3 BOLT, SLAE-3, & SLAE-6
- Length: 10"
- Width: 5"
- Height: 22"
- Weight: 11 lbs

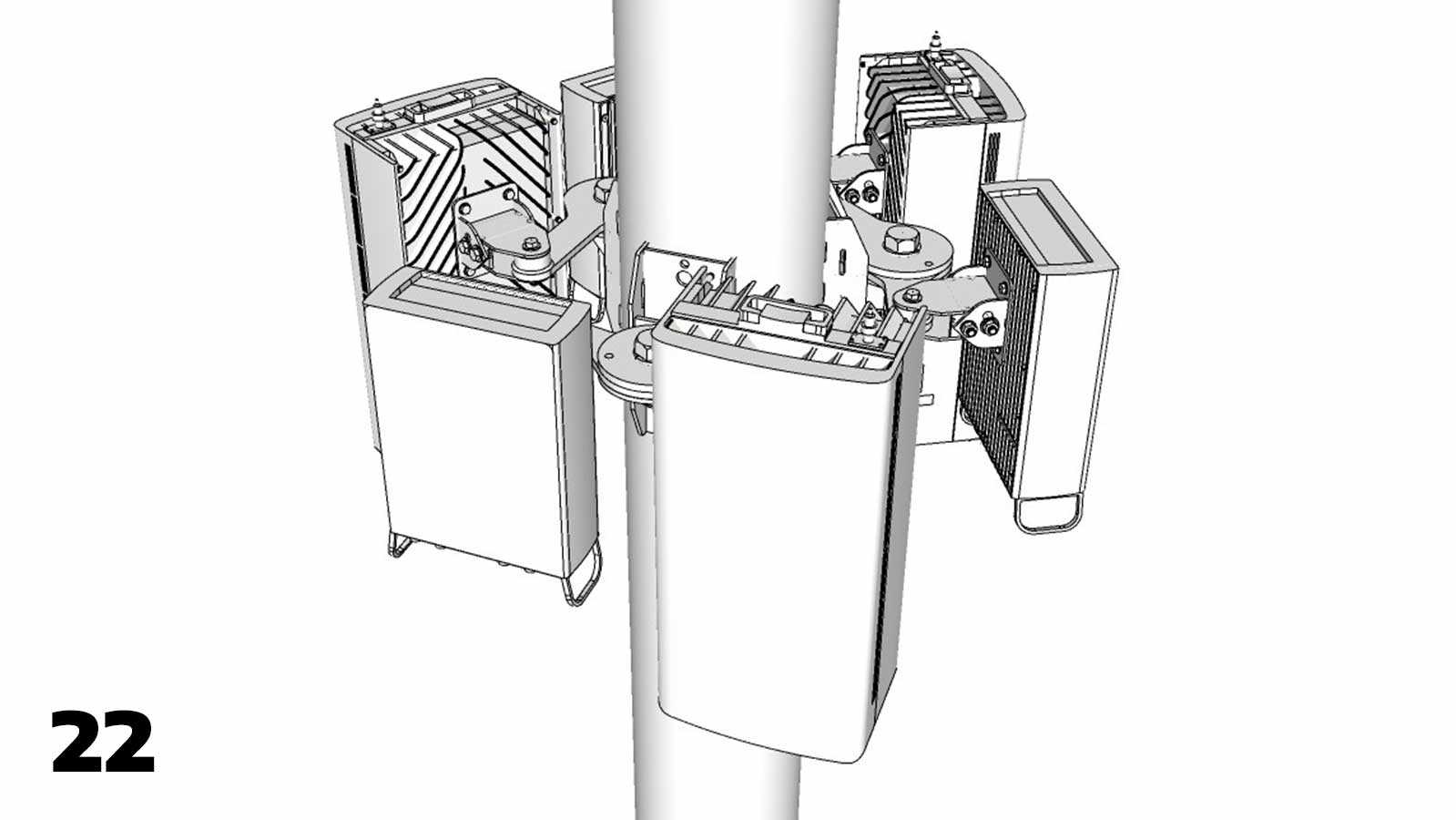

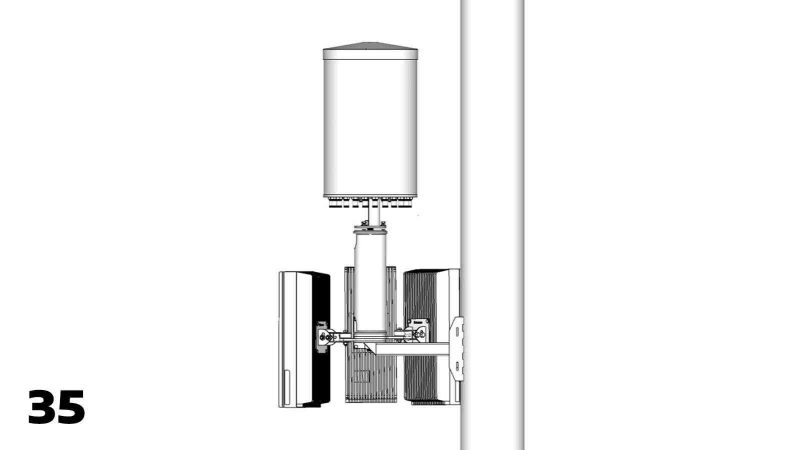

COMPACT STACK-BRACKET
P/N: COM-STKBKT
Features:
- Designed for side pole mounting in close range to poles
- Strength and versatility for any weight or style antenna
- All attachments have full adjustability allowing both pan & tilt along with the 360° rotation on the stack.
- Adjustable radius of 20° at the ball joint of the bracket to angle antennas up or down
- Ball joints maneuver easily and lock into place.
- Customizable mounting bracket per antenna needed
- Heavy Duty Steel
- Hardware included
RECTIFIER SHROUD BRACKET
P/N: RSOB
Features:
- Used for securely mounting and concealing multiple rectifiers
- Simple installation inside the corresponding shroud
- Adjustable depth
- Works with all shrouds in our catalog
- Aluminum
- Hardware included
- Length: 9"
- Width: 20"
- Height: 17"
- Weight: 3 lbs

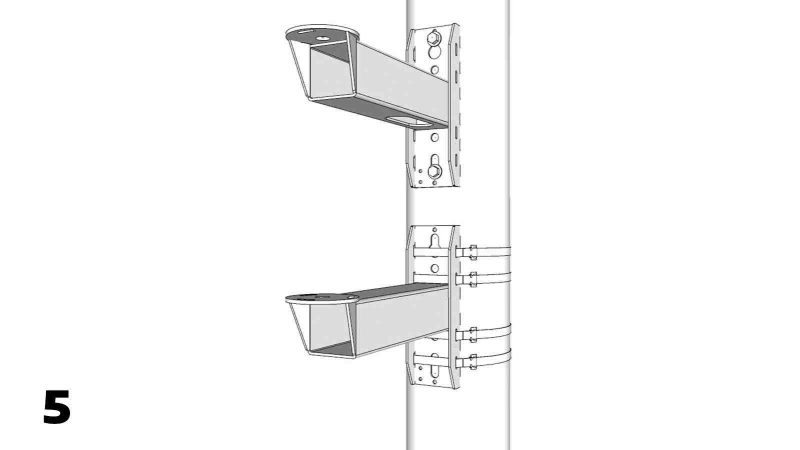

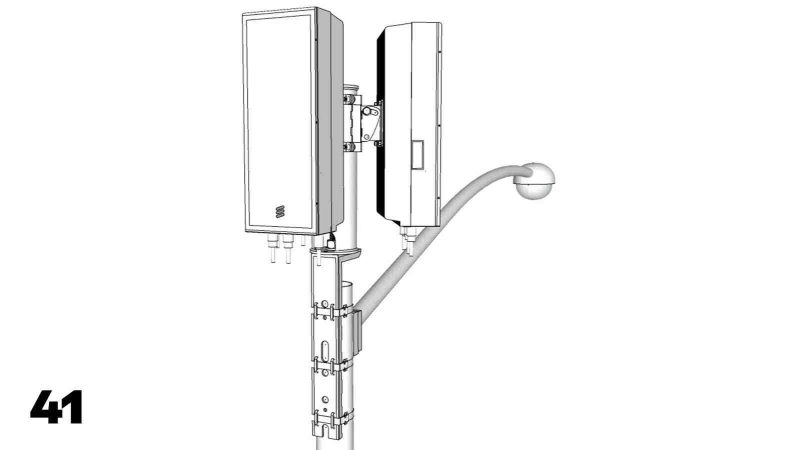

SIDE ARM ANTENNA POLE BRACKET
P/N: APB-01
Features:
- Made for heavy duty side pole antenna mounting
- Galvanized Steel
- Available for paint or standard RAL powder coating
- Hardware included
- Recommended use with GAL-SAAS or SMWAB-GAL with SLAE-3, SLAE-3 BOLT or SLAE-6
- Length: 39"
- Width: 4.3"
- Height: 10"
- Weight: 19 lbs
SIDE ARM ANTENNA POLE BRACKET 8"
P/N: APB-02
Features:
- Made for heavy duty side pole antenna mounting
- Galvanized Steel
- Available for paint or standard RAL powder coating
- Hardware included
- Recommended use with GAL-SAAS or SMWAB-GAL with SLAE-3, SLAE-3 BOLT or SLAE-6
- Length: 8"
- Width: 4.3"
- Height: 10"
- Weight: 7 lbs
SIDE ARM ANTENNA POLE BRACKET 16"
P/N: APB-03
Features:
- Made for heavy duty side pole antenna mounting
- Galvanized Steel
- Available for paint or standard RAL powder coating
- Hardware included
- Recommended use with GAL-SAAS or SMWAB with SLAE-3 OR SLAE-6
- Length: 16"
- Width: 4.3"
- Height: 10"
- Weight: 12 lbs
STEEL POLE SIDE ARM BRACKET
P/N: APB-04
Features:
- Slim design for side mounting antennas to metal or fiberglass poles
- Galvanized Steel
- Available for paint or standard RAL powder coating
- Hardware included
- Length: 16"
- Width: 4.3"
- Height: 10"
- Weight: 12 lbs
FLUSH MOUNT SIDE ARM BRACKET
P/N: APB-05
Features:
- Close range side pole antenna mounting
- Band or bolt attachment
- Galvanized Steel
- Available for paint or standard RAL powder coating
- Recommended use with Compact Stack-Bracket
- Length: 4"
- Width: 4"
- Height: 10"
- Weight: 6 LBS

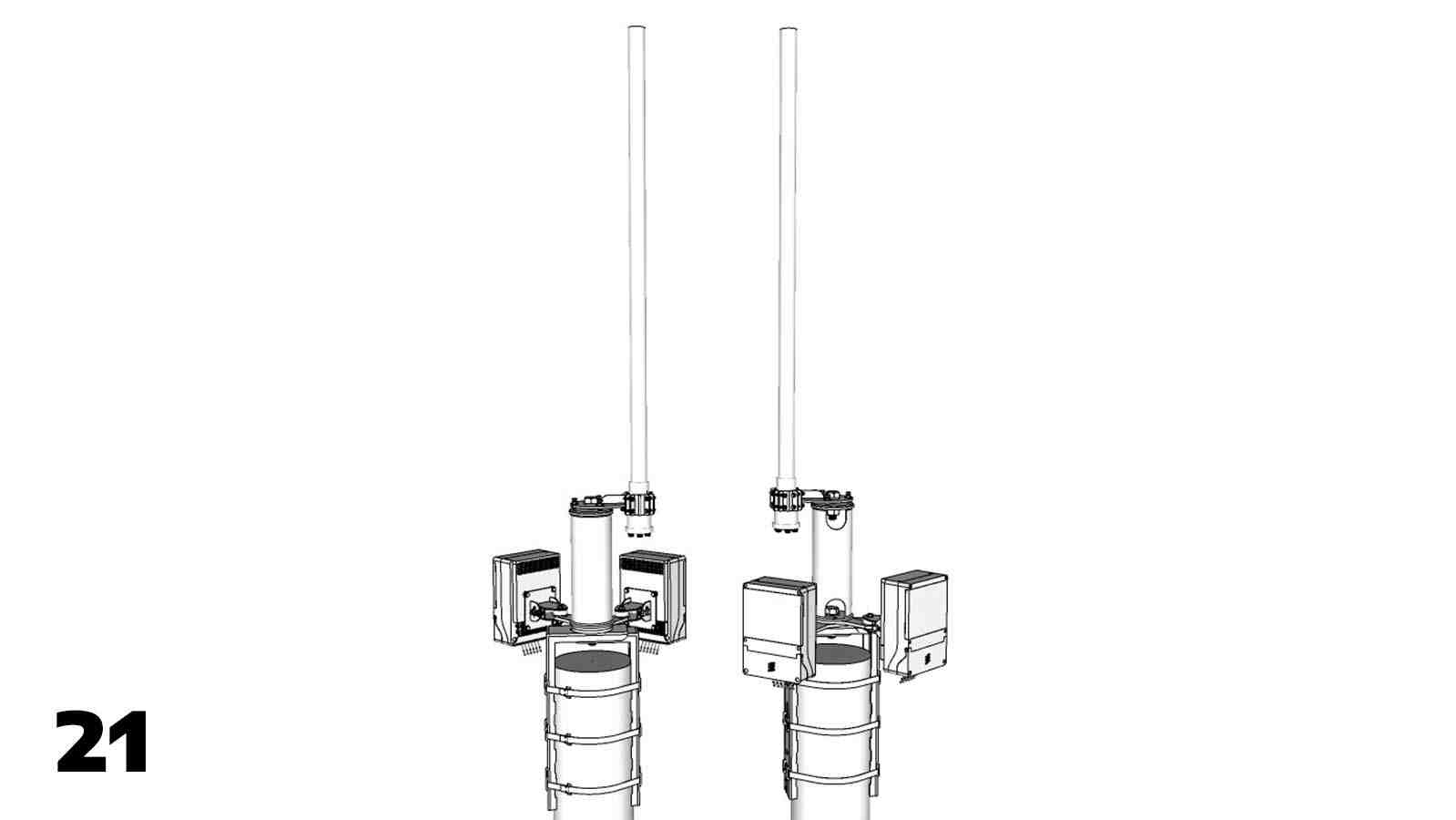

SIDE MOUNT WHIP ANTENNA BRACKET
P/N: SMWAB-GAL
Features:
- Antenna bracket used for mounting on wood and metal poles at various radiuses
- Adjustable from a 2" to 4" diameter to fit antenna
- Recommended use with TPB-02-G, APB-01, APB-02, or APB-03
- Galvanized steel
- Hardware included
- Length: 10"
- Width: 5"
- Height: 2.3"
- Weight: 7 lbs

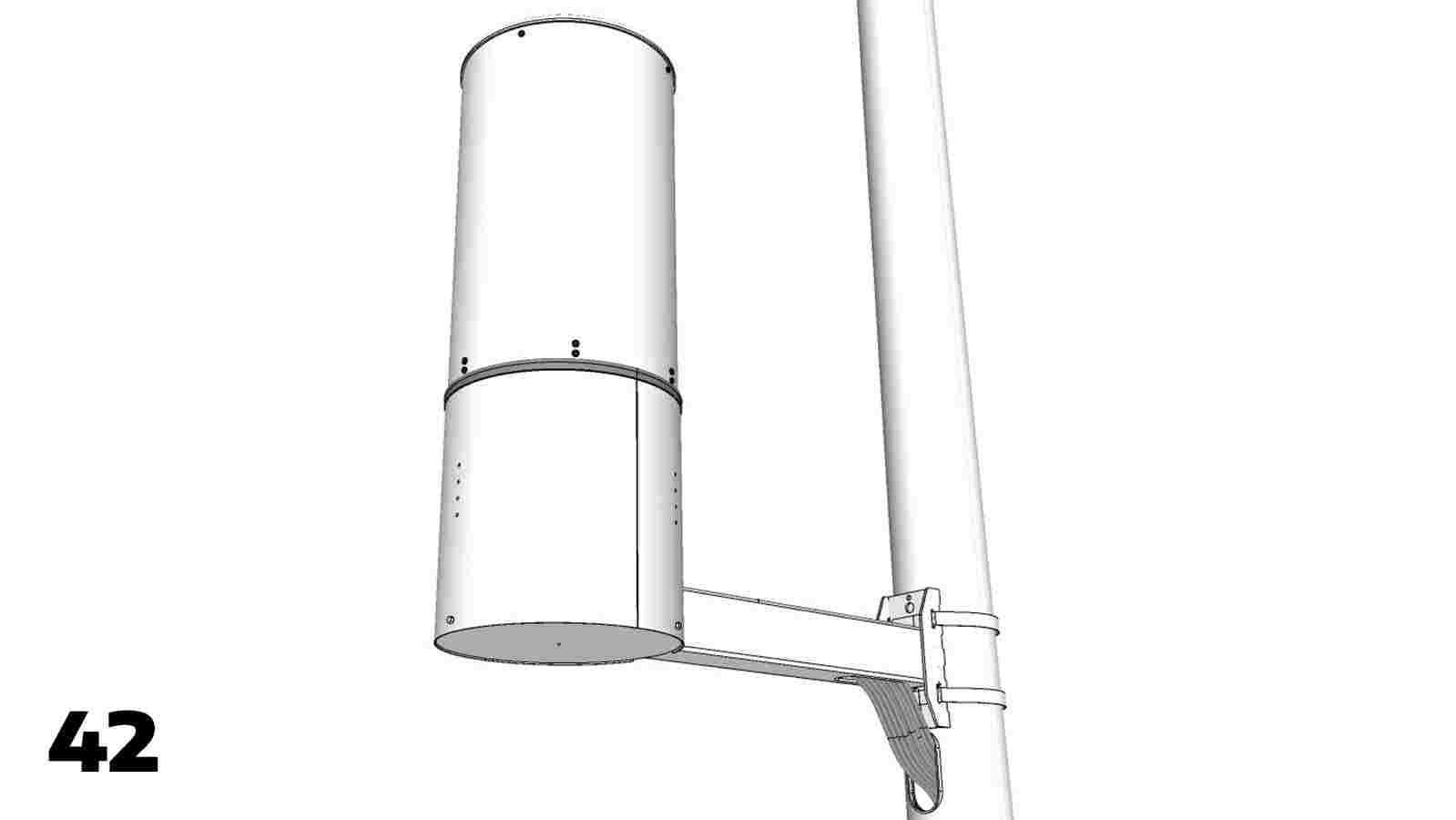

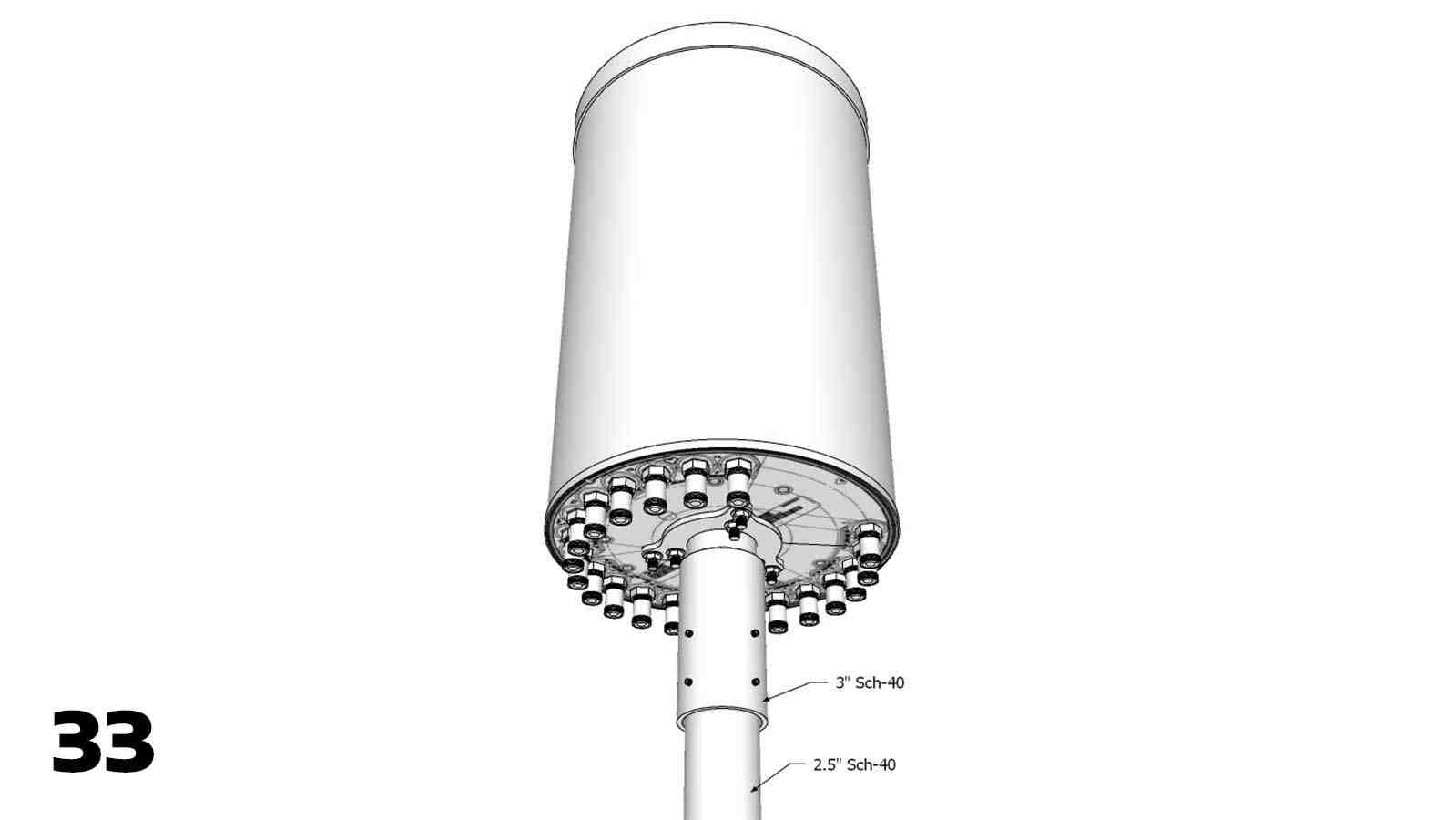

SELF-LEVELING ANTENNA EXTENSION
P/N: SLAE-3
Features:
- Made for leveling antennas while attached to Top Pole Brackets & Side Arm Antenna Brackets
- Galvanized Steel
- Easy Installation
- Hardware included
- Length: 6"
- Width: 6"
- Height: 4"
- Weight: 4 lbs
3" SELF-LEVELING ANTENNA EXTENSION
P/N: SLAE-3 BOLT
Features:
- Made for leveling antennas while attached to Top Pole Brackets & Side Arm Antenna Brackets
- Galvanized steel
- Easy Installation
- Hardware included
- Length: 5"
- Width: 5"
- Height: 4"
- Weight: 5 lbs
6" SELF-LEVELING ANTENNA EXTENSION
P/N: SLAE-6 GAL
Features:
- Made for leveling antennas while attached to Top Pole Brackets & Side Arm Antenna Brackets
- Galvanized steel
- Easy Installation
- Hardware Included
- Length: 6"
- Width: 6"
- Height: 6"
- Weight: 3.5 lbs
STAINLESS STEEL ANTENNA EXTENSION
P/N: SSAE-20
Features:
- An extension for 4G antenna mounting above the 360° Stack-Brackets
- Creates additional space for pole mounted assemblies
- Extends from pole top or side pole mounting brackets for additional space in one installation
- Stainless Steel
- Recommended use with SKTBKT-360 to mount an additional antenna on top pole or side pole assemblies
- Can also be mounted with the Self-Leveling Antenna Extensions (i.e. SLAE-3) to ensure a level mount on poles
- Height: 20"
- Diameter: 5"
- Weight: 6 lbs
